Εργάτης Ramsey Rep 9000lbs

Περιγραφή

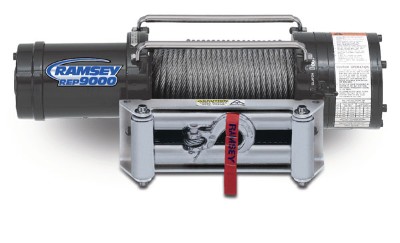

Εργάτης 9000 lbs Ramsey made in USA.

Rated line pull (single line) 9,000 lbs. (4,070 kgs)
Gear reduction ratio 138:1 (12V) (24V)
Motor Series wound - 4.8 hp (12V) 2.5 hp (24V) DC
Overall dimensions (LxWxH) 22.65" x 6.12" x 6.38" (575 mm x 156 mm x 162 mm)
Drum size Diameter 2.5" (63mm) Length 9" (228mm)
Weight REP 9000R - 92 lbs. (41.7kgs)
Cable supplied 95ft. (29m) of 5/16" (8 mm) galvanized aircraft cable with replaceable clevis hook
Mounting Bolt Pattern 10.00± .015 IN X 4.50± .015 IN (254.0 x 114.3 mm)
